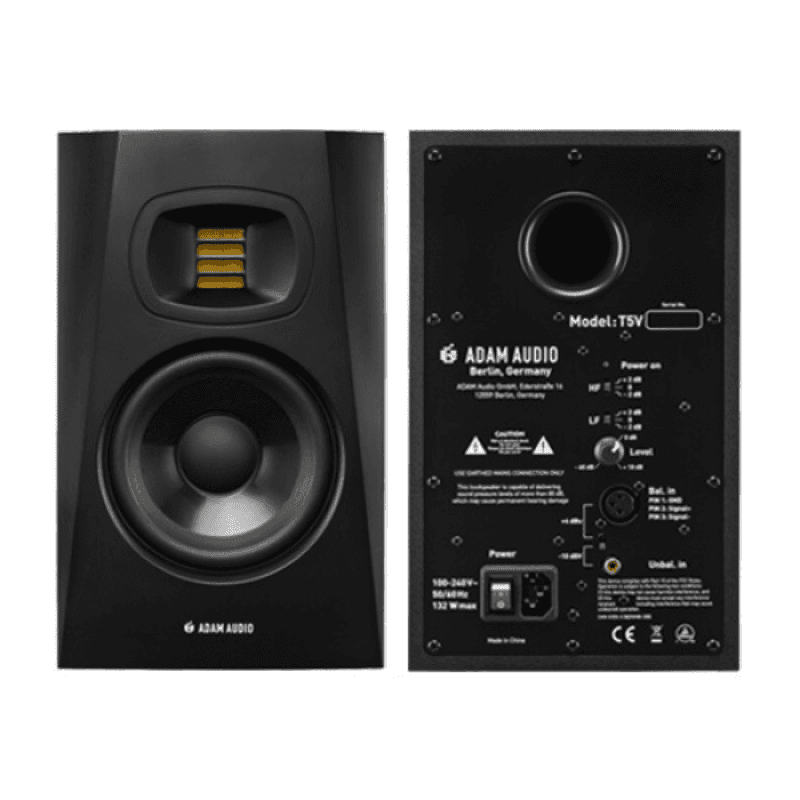

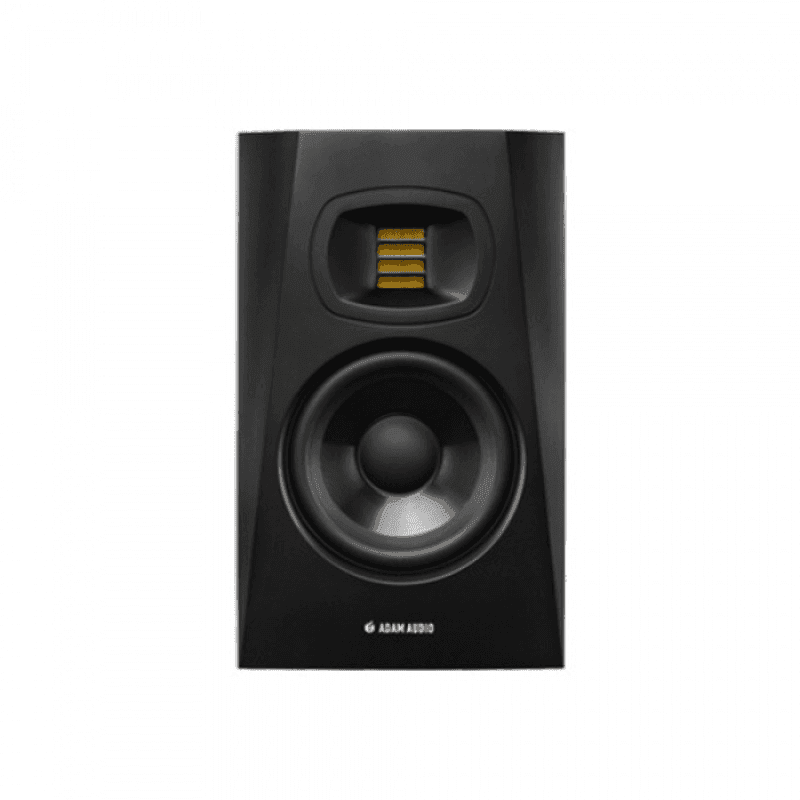

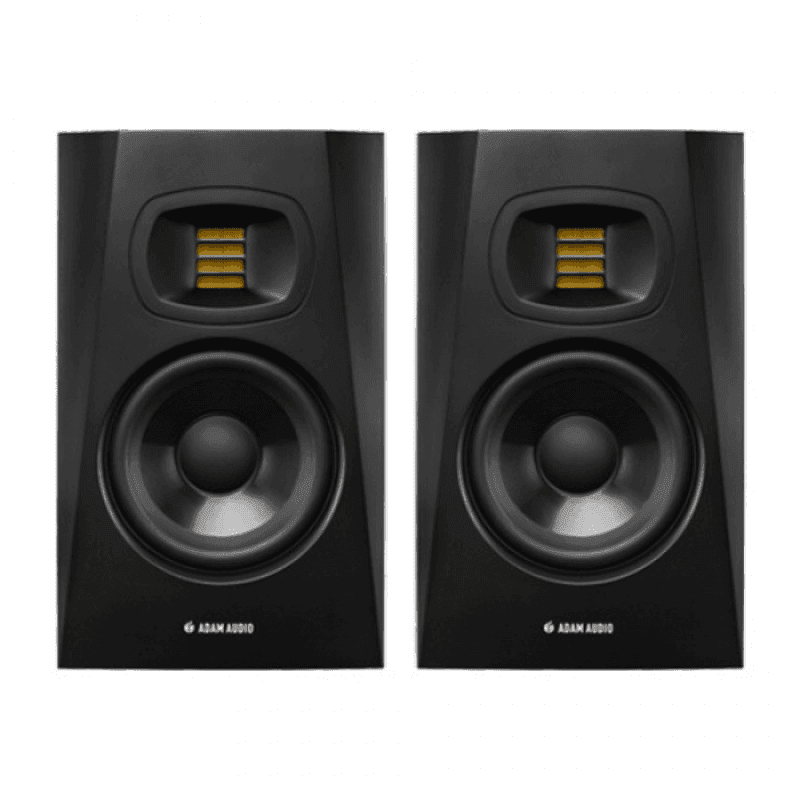

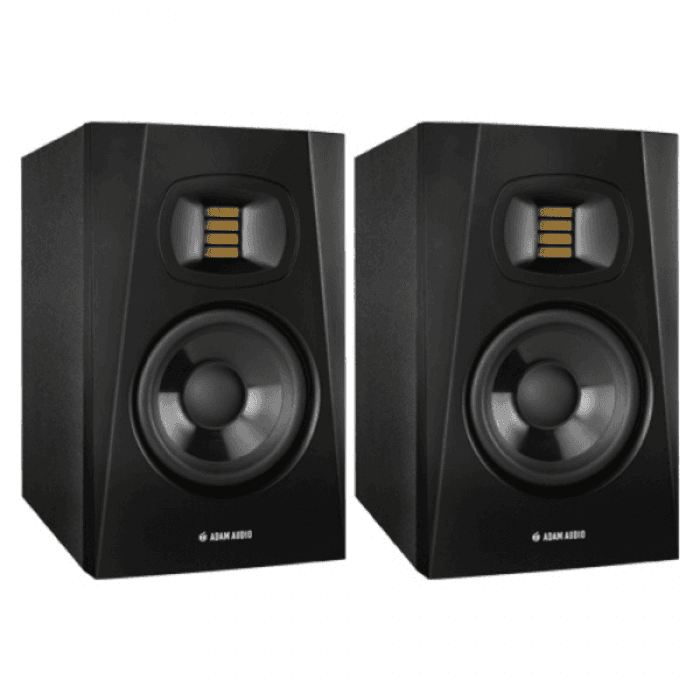

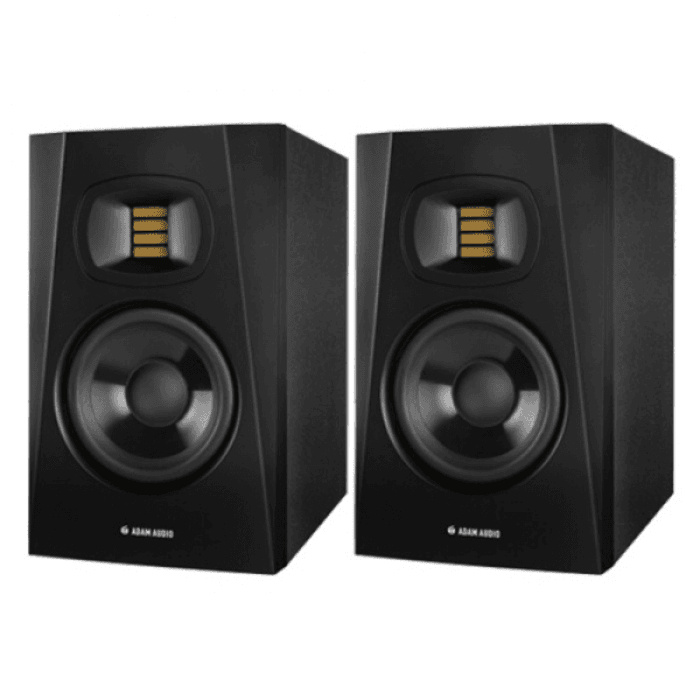

ADAM Audio T5V Active Studio Monitor – Pair

With its 5” woofer the bass-frequency response of the T5V extends to 45 Hz. The new U-ART tweeter, a breakthrough solution for use in high-resolution recording and mixing on a budget, goes up to 25 kHz and is mated to a precision waveguide with the same dispersion-control attributes as the High Frequency Propagation (HPS) waveguide used in ADAM Audio’s flagship S Series monitors. The waveguide’s highly uniform dispersion of high frequencies provides an incredibly wide sweet spot that frees you from being glued to a rigid mix position while working.

A beveled cabinet with a rear-firing bass reflex port and a small footprint allows placement anywhere in your room, no matter how small, and contains built-in DSP-controlled driver crossovers and equalization as well as multi-way analog connections. Powered with a 50 W Class D amplifier for the woofer and a 20 W Class D amplifier for the U-ART tweeter, the T5V produces SPLs of up to 106 dB per pair. Excellent acoustic characteristics, small dimensions and an outstanding cost/performance ratio make this studio monitor perfectly suited for use in small control rooms in music, video and broadcast production.

U-ART 1.9” Accelerated Ribbon Tweeter

• Allows longer operation with fewer signs of fatigue
• Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
• Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)

The air velocity ratio of 4:1 during the sound generation by folded U-ART membrane

• Direct, fast response in the high-range even with complex transients

HPS waveguide from the S Series

• Makes dispersion more consistent and imaging more stable over a wider area
• Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.

Lightweight polypropylene construction of the woofer

• Excellent transient response even at high sound levels without breakup of the diaphragm

Vertical 2-way system with 5” woofer

• High resolution of the stereo image

Spacious rear-firing bass reflex port

• Bass reproduction with very low compression

Linear frequency response of 45 Hz to 25 kHz

• Unbiased reproduction in a wide frequency band

Maximum peak sound pressure per pair in 1 m ≥ 106 dB

• Powerful, compression-free sound reproduction even at very high sound levels

DSP-powered crossover design

• Smooth frequency response without interferences between the drivers in the critical mid-range

Simple room acoustic adjustments via high- and low-shelf filters

• Allows optimal adaptation to acoustically difficult listening environments or individual preferences

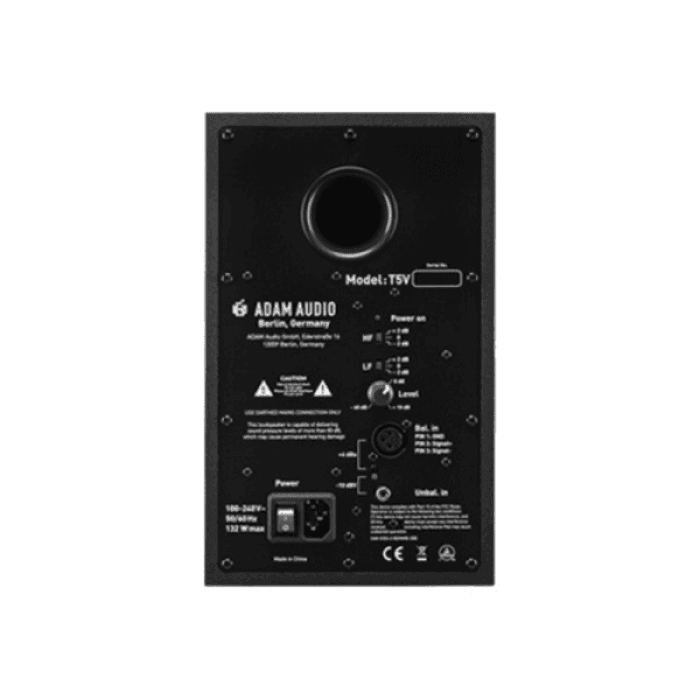

Analog inputs over XLR and RCA

• Optimized for balanced and unbalanced line signals

Acoustically optimized cabinet geometry

• Reduction of unwanted reflections on the cabinets

Compact cabinet dimensions

• Fits every desktop
